SPECIFICATIONS

Type: Fittings

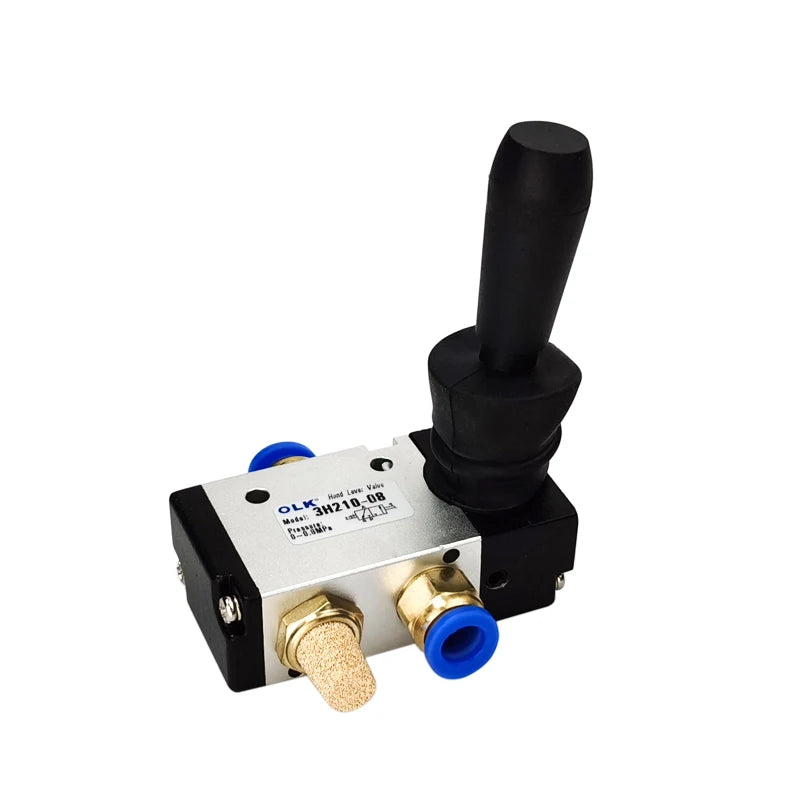

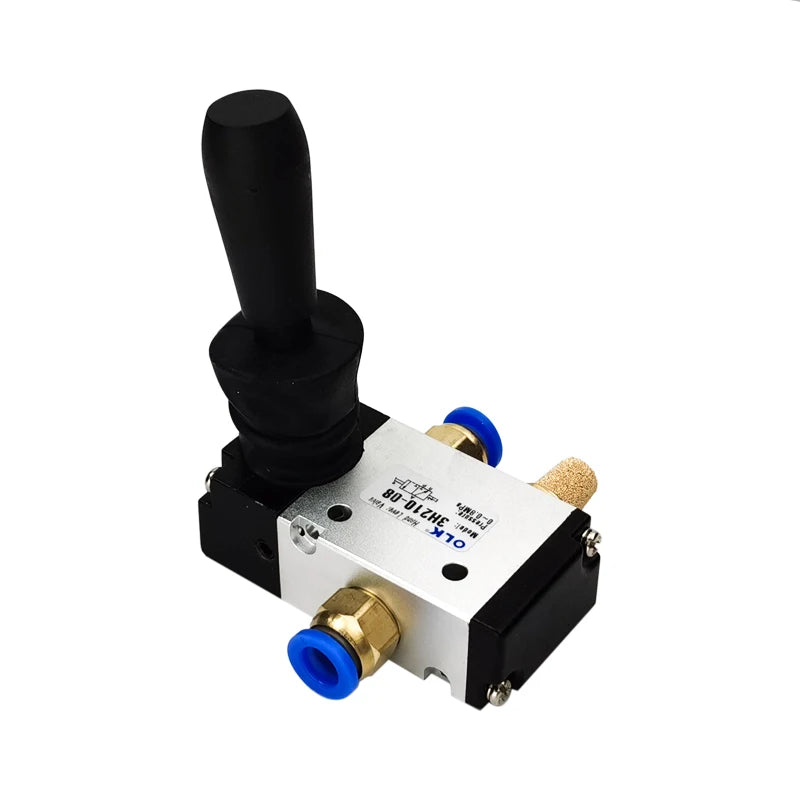

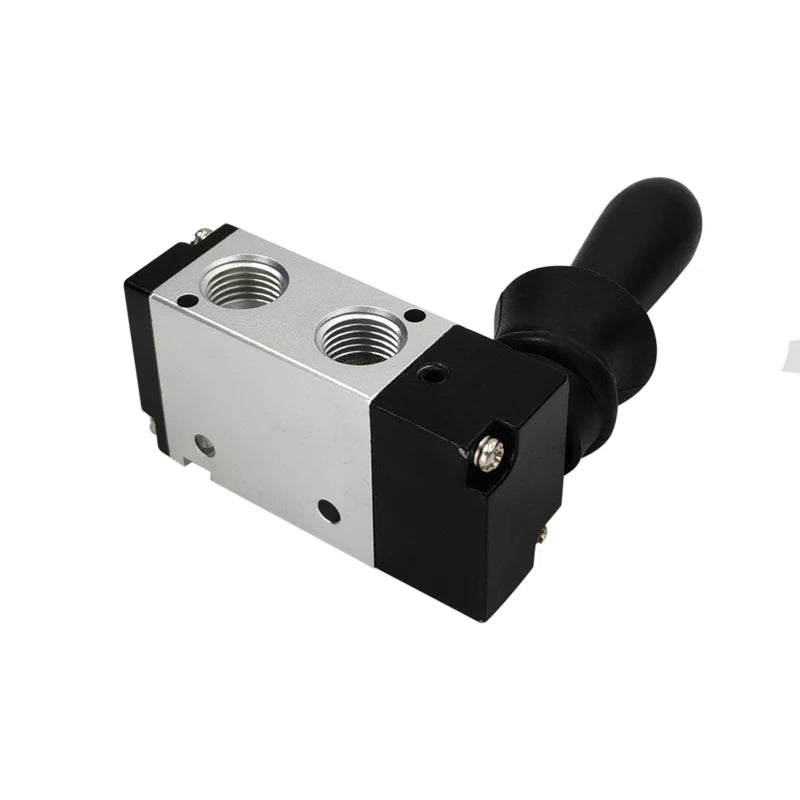

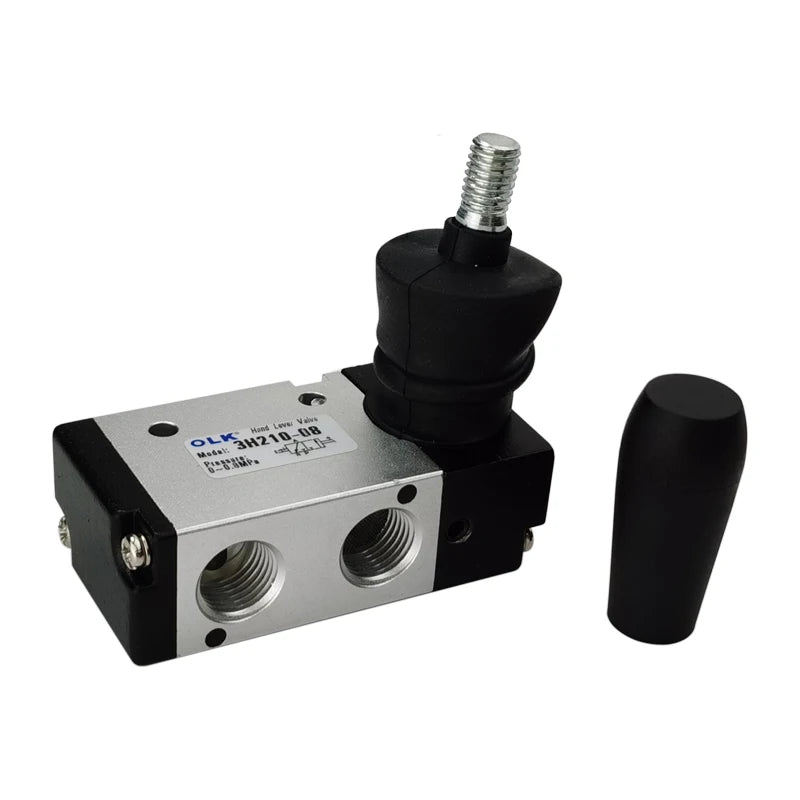

Model Number: 3H210-08

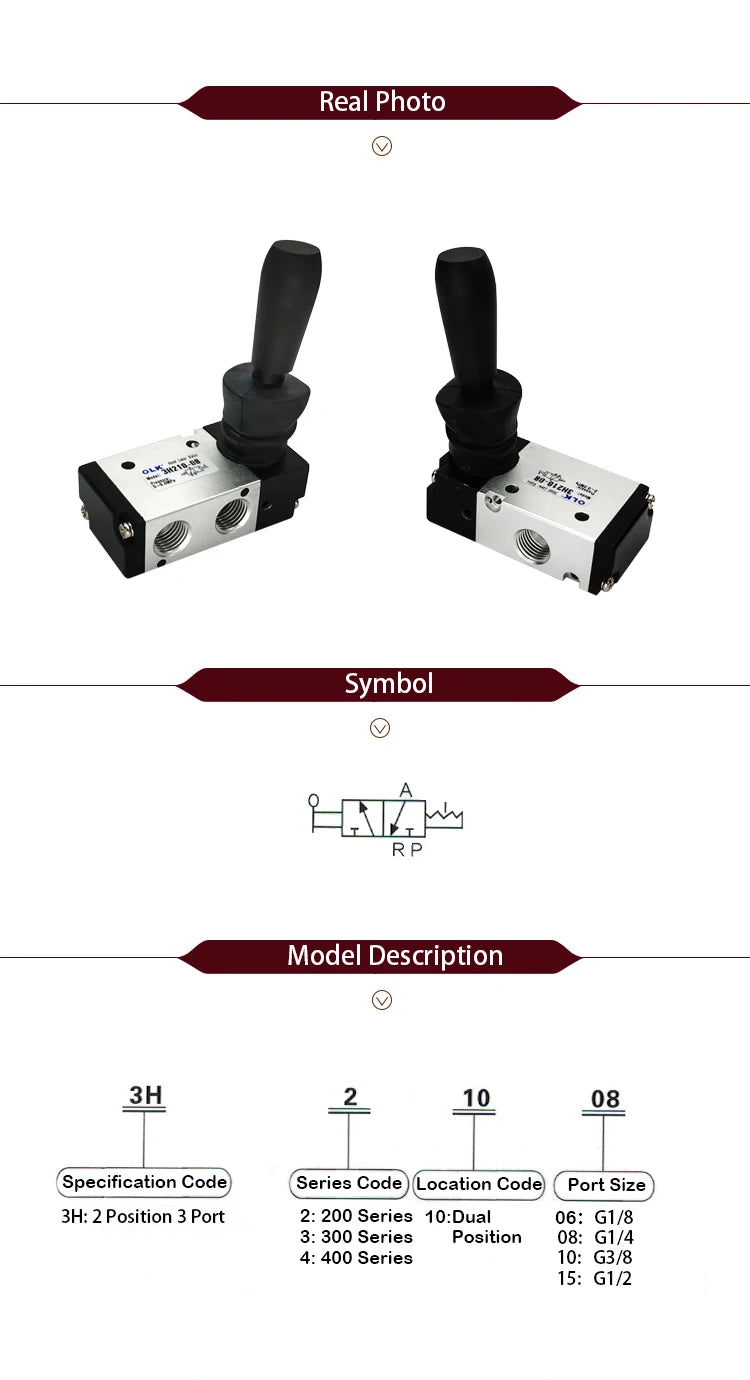

Position and way NO.: 3 port 2 position

Orifice size: 16mm2(CV=0.4)

Port size: Air inlet=Air outlet=PT1/4"

Voltage range: ±10%

Operating pressure: 1.5~8kgf/cm2

Max.proof pressure: 10.5kgf/cm2

Temp.range: 5~60 C

Coil insulation &protection grade: IP65(DIN 40050)

Highest action frequency: 5 cycles/per.sec.

Initial state: Normally closed
