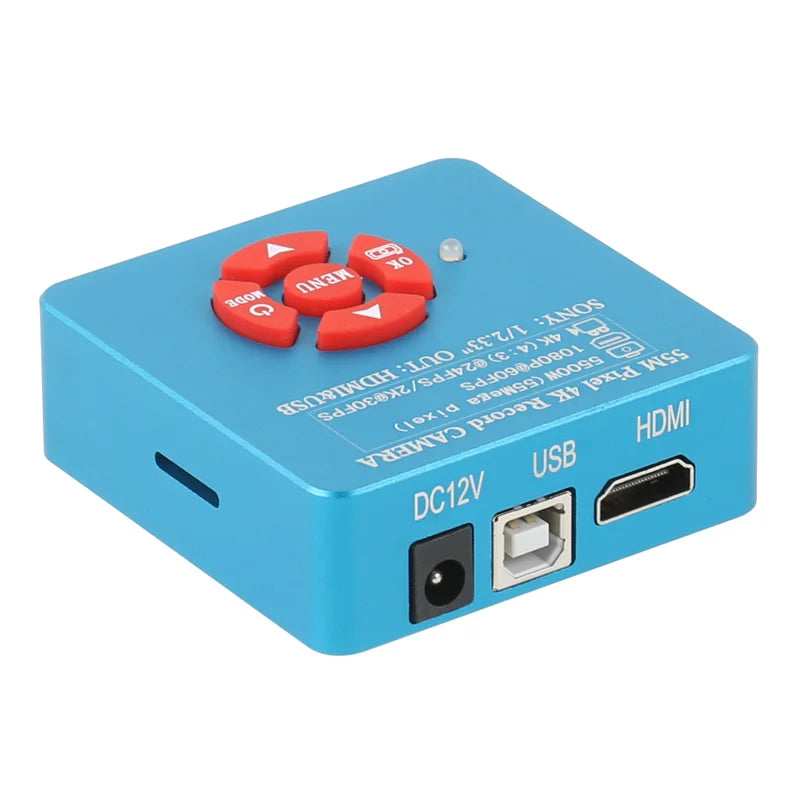

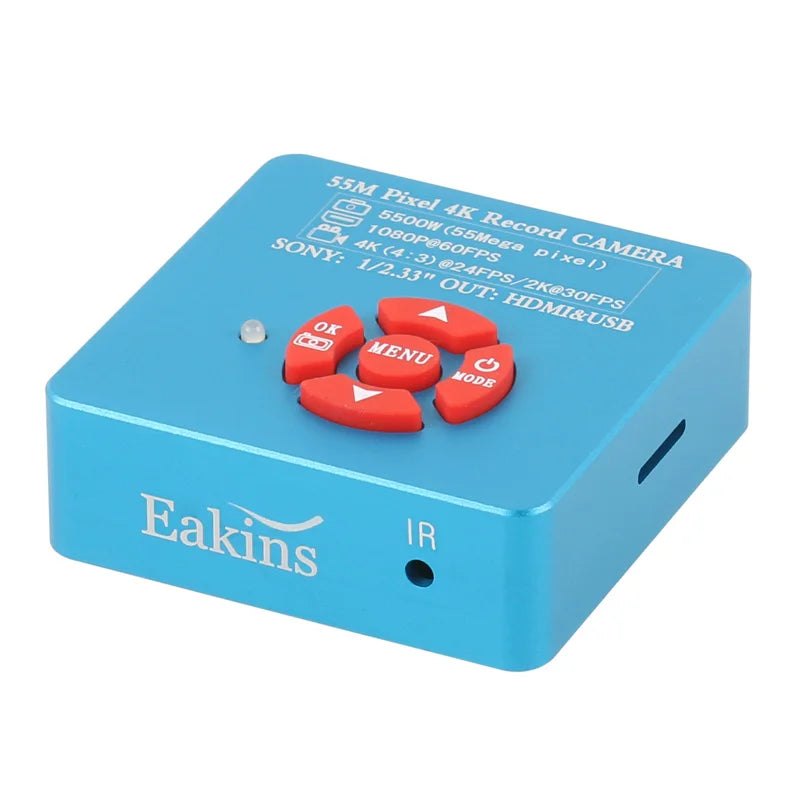

Specification:

Picture Pixel: 9885X5560  55M Pixel
Video Frame rate: 4K(4:3)@24fps/2K@30fps/1080P@60fps

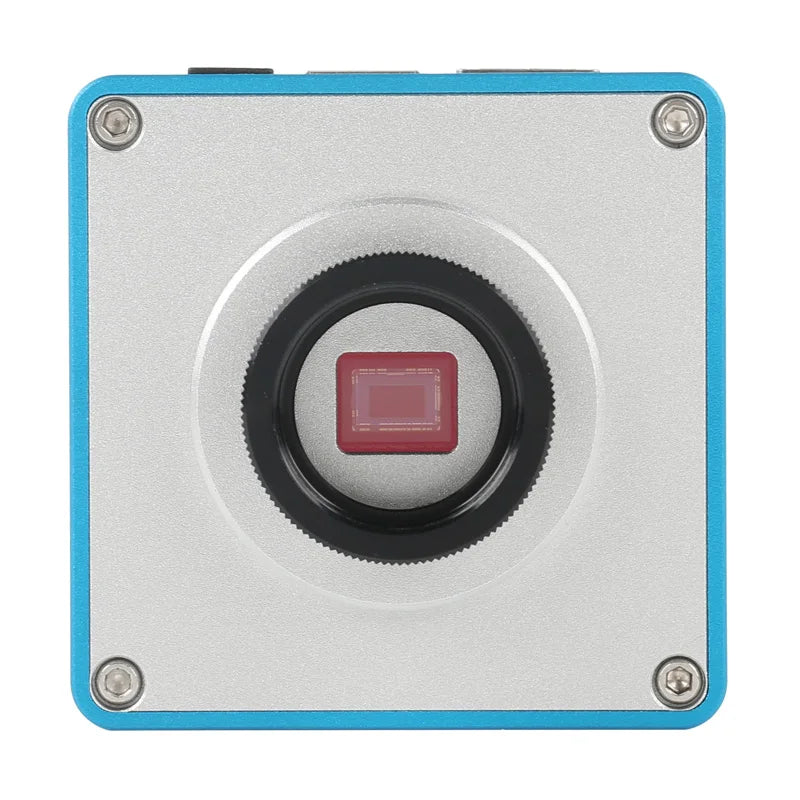

CMOS censer: SONY  1/2.33 inch
CMOS pixel: 1.33um x 1.33um
Color setting: Auto
White balance: Auto/one button calibration/Manual
EV: Auto/Manual
Camera mode HDMI output: 1080P @60 FPS
Grid line: 8 horizontal lines, 8 vertical lines
TF card: 4GB (Up to 128GB max)
Cross line: Overlap or Cancel

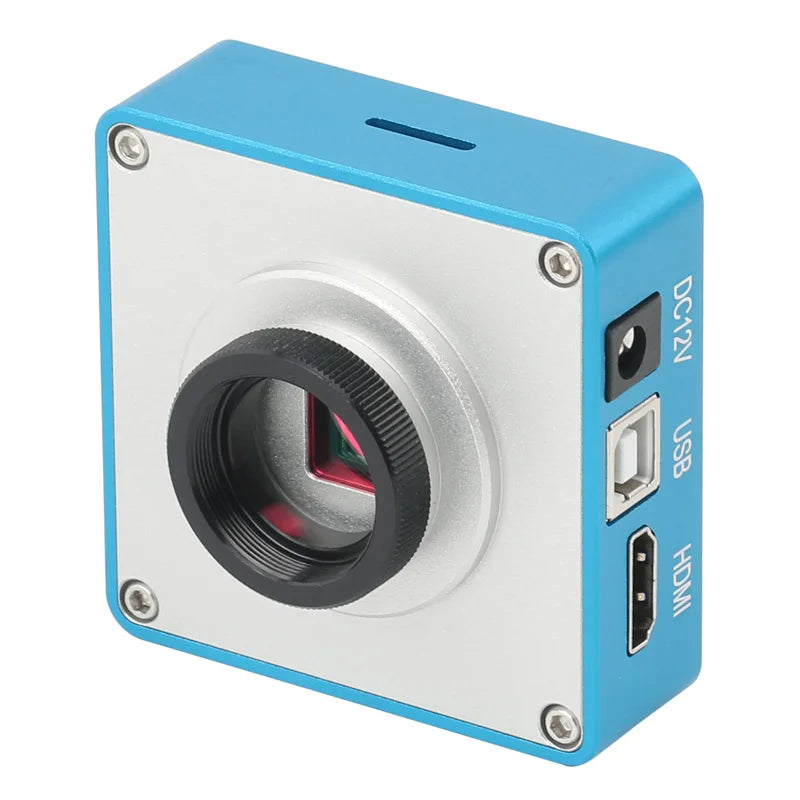

Lens jack: Standard C
Power: 5V-12V/1A
Size: 68x68x33mm
Weight: 200g
Working temperature: 0-70℃

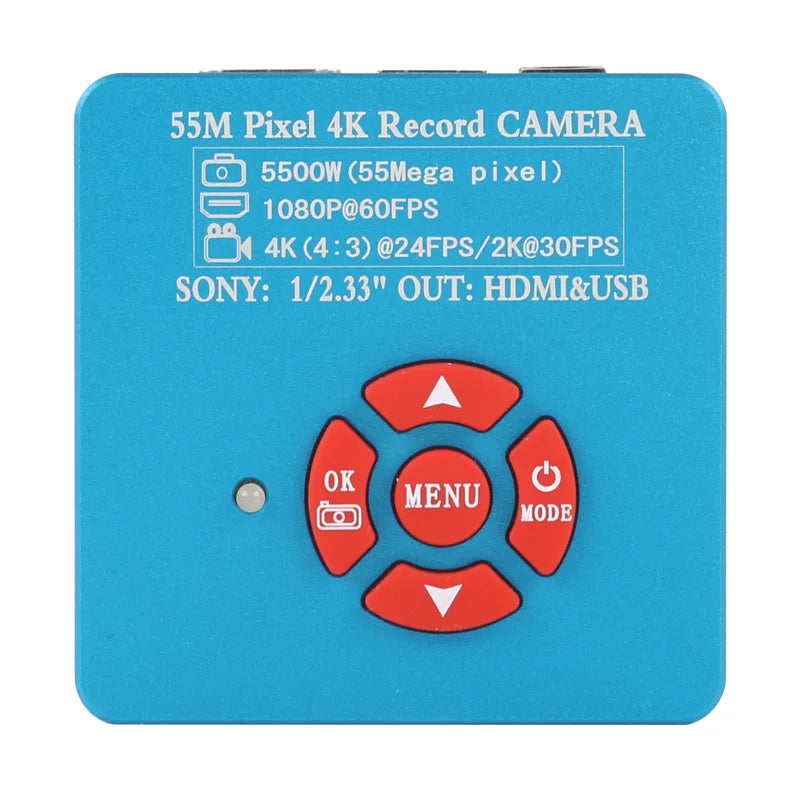

Remote Control Instruction:
1．+ KEY: Zoom in / - KEY: Zoom out
2．UP: EV+; DOWN: EV-
3．OK: Confirm button or Start recording
4．Menu
5．Mode: Camera / Video / Playback mode change button
6．The bottom button is to take photos
7．Left & Right: Not in use


180X 120X C-MOUNT Lens
Working distance: 95mm
Zoom c-mount Lens
0.5X C-mount adapter
Zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 120X 180X on the display)
Size: 180mm(L) * 50mm(DIA)
Working distance:145-100mm

300X C-MOUNT Lens
Working distance: 95mm
Zoom c-mount Lens
1X C-mount adapter
Zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 300X on the display)
Size: 248mm(L) * 50mm(DIA)
Working distance:110-100mm


200X Working distance:100mm -175mm
500X Working distance:90mm -110mm
Connector:CS C mount
Zoom:continouasly variable zoom
Objective Magnification:0.7X - 5X(about 28 - 200X on the display)/(about 70 - 500X on the display)
Eyepiece lens adapter:0.4X/1X
Fixed position:50mm
Locking:0.7X - 5X Locking
Thread:42mm
Auxiliary Objective Lens:0.35X, 0.5X, 2X,1X (optional)
Size:132mm(L) * 55mm(DIA) / 175mm(L) * 55mm(DIA)

56 LED Adjustable Compact Microscope Ring Light
Provides intense and focused shadow-free illumination
56 bright white LED bulbs
Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)
Working Distance: 27mm-120mm

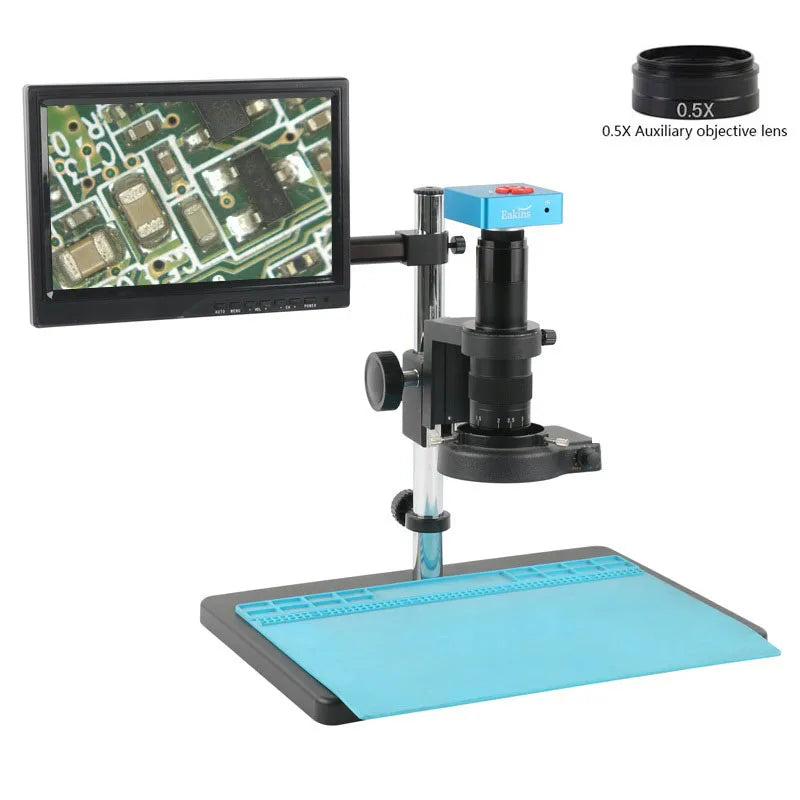

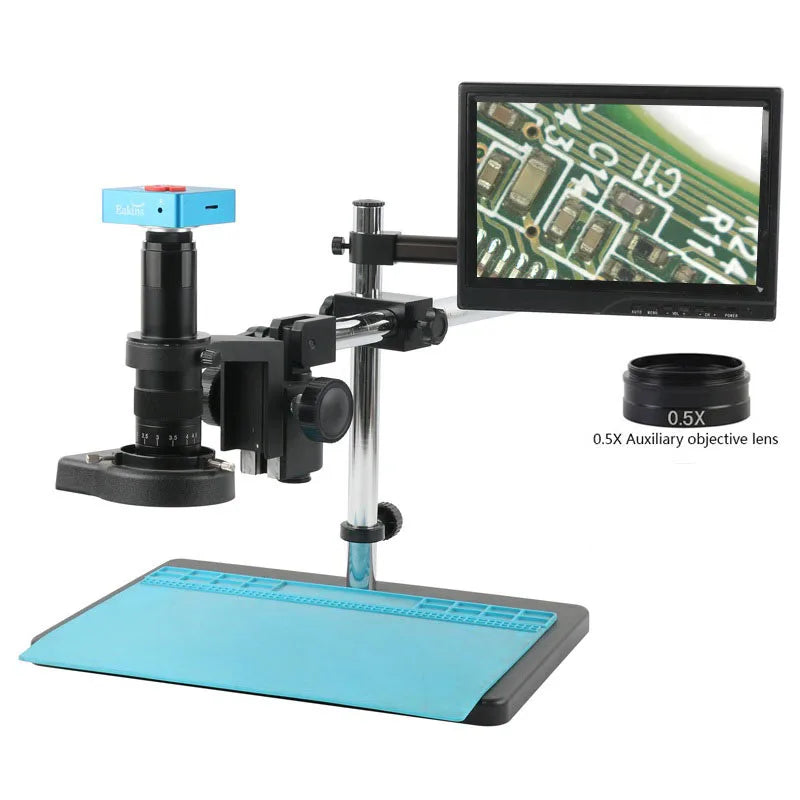

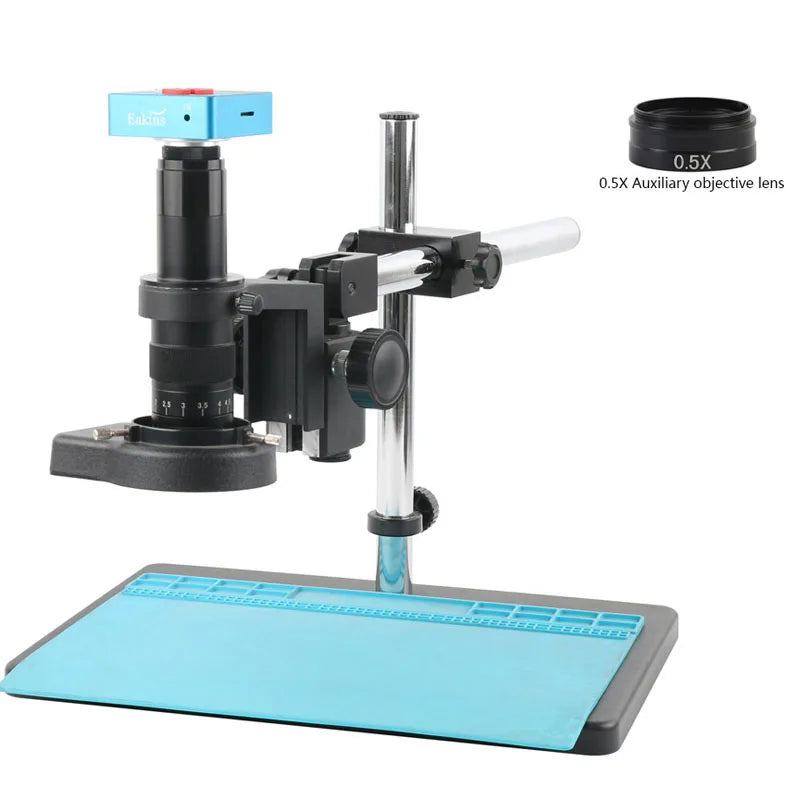

Package incluede:

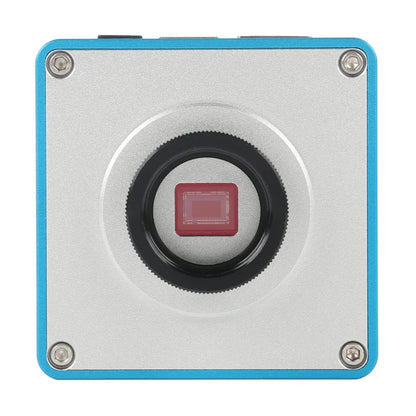

1 x 55MP Video Microscope Camera
1 x Power supply
1 x HDMI line
1 x USB line
1 x IR Remote control
1x bracket
1x thermal insulation pad
1 x C-MOUNT Lens
1 x 56 LED Adjustable Microscope Ring Light

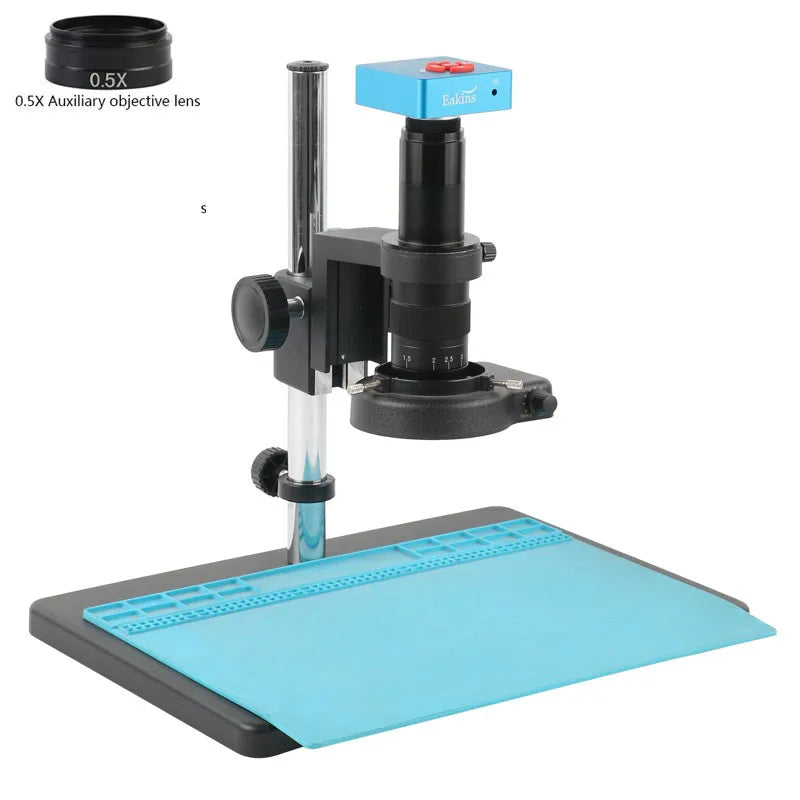

1X 0.5x Barlow objective (increased working distance)
Optional accessories:
1X 10.1 inch display
