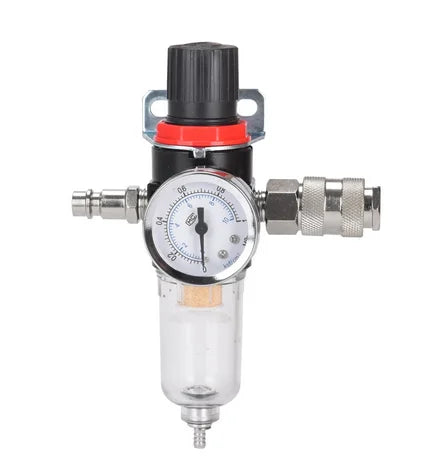

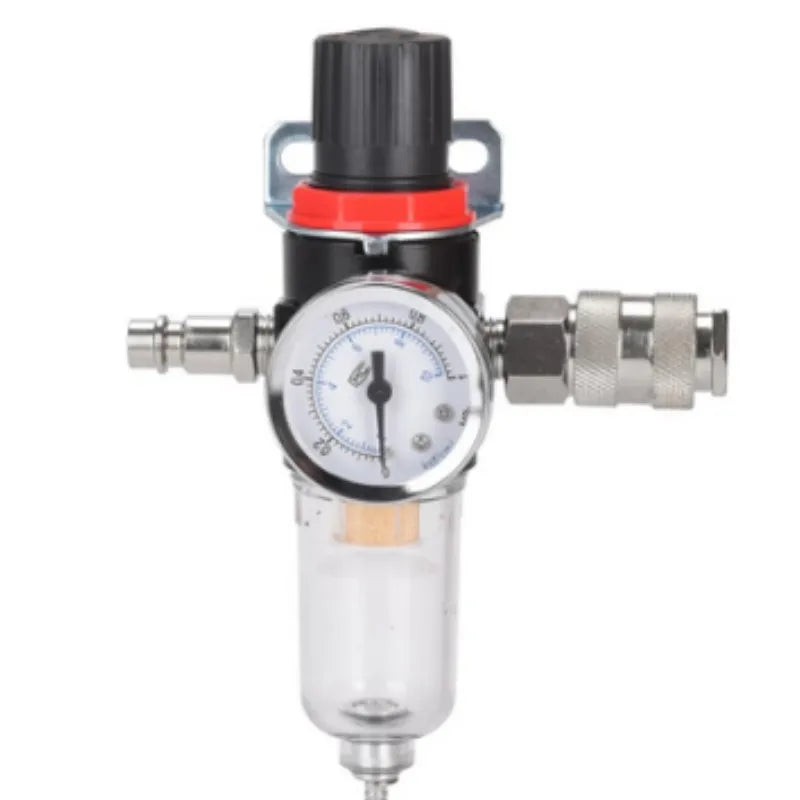

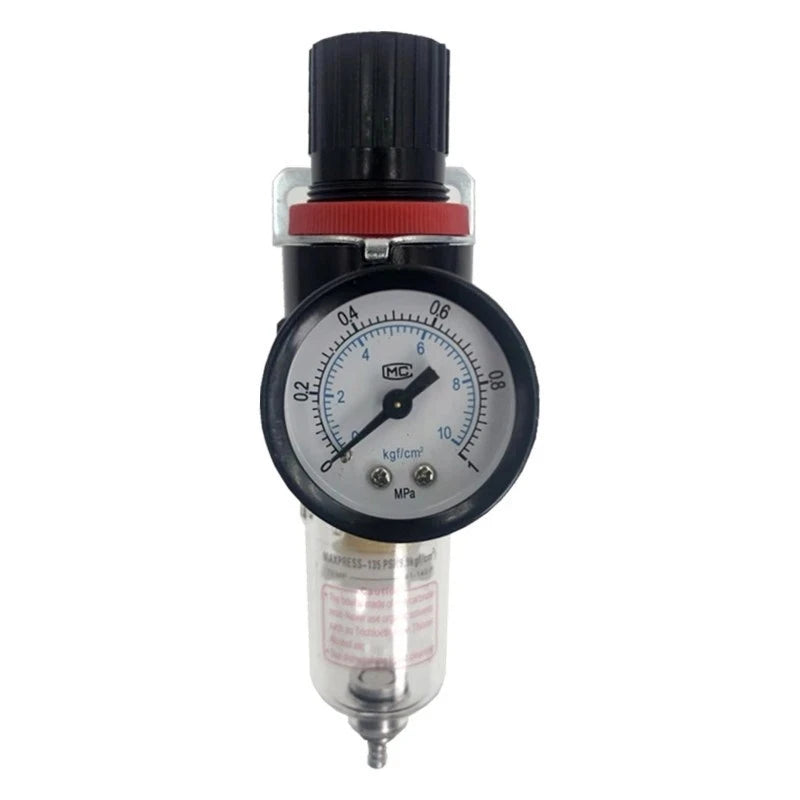

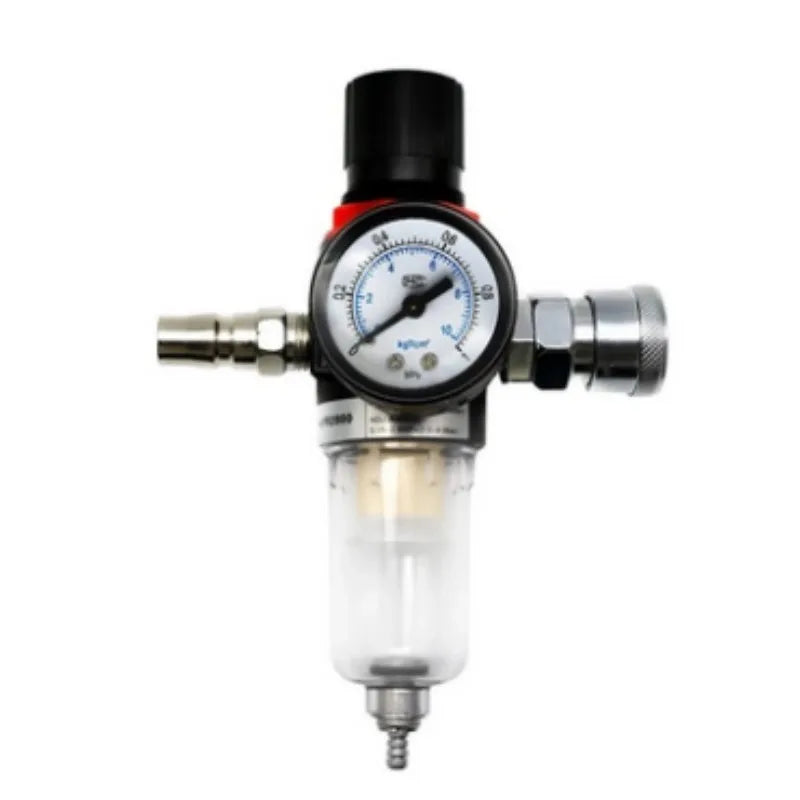

Afr-2000 1/4 Pneumatic Regulator Water Filters

Product Description:

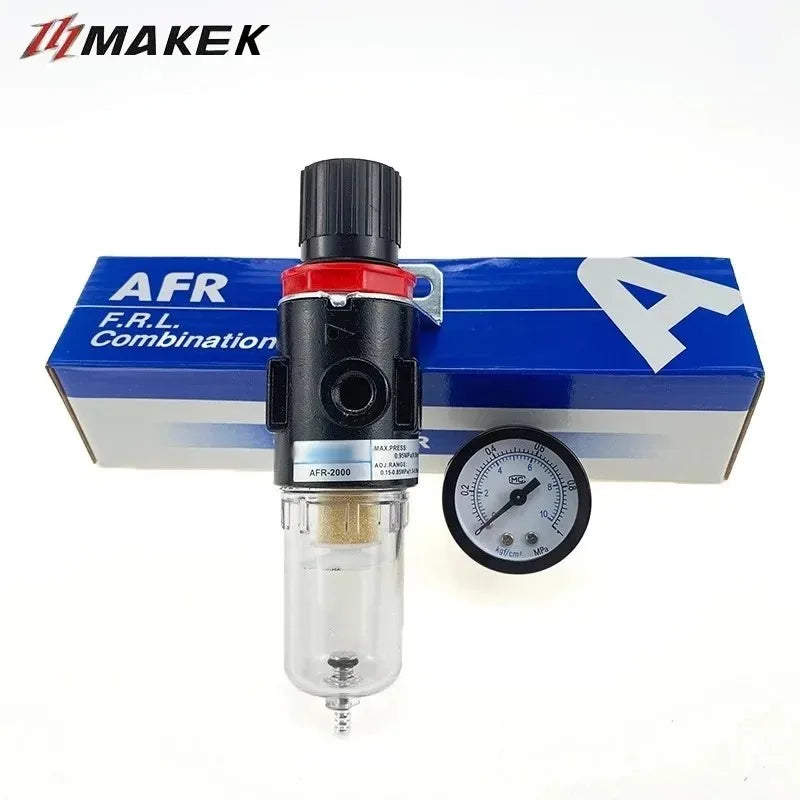

Model: AFR2000 (AFR is the model, 2000 refers to the port size)

Port size: G1 / 4

Filter+PC4mm Fitting: For Pipe4*2.5mm

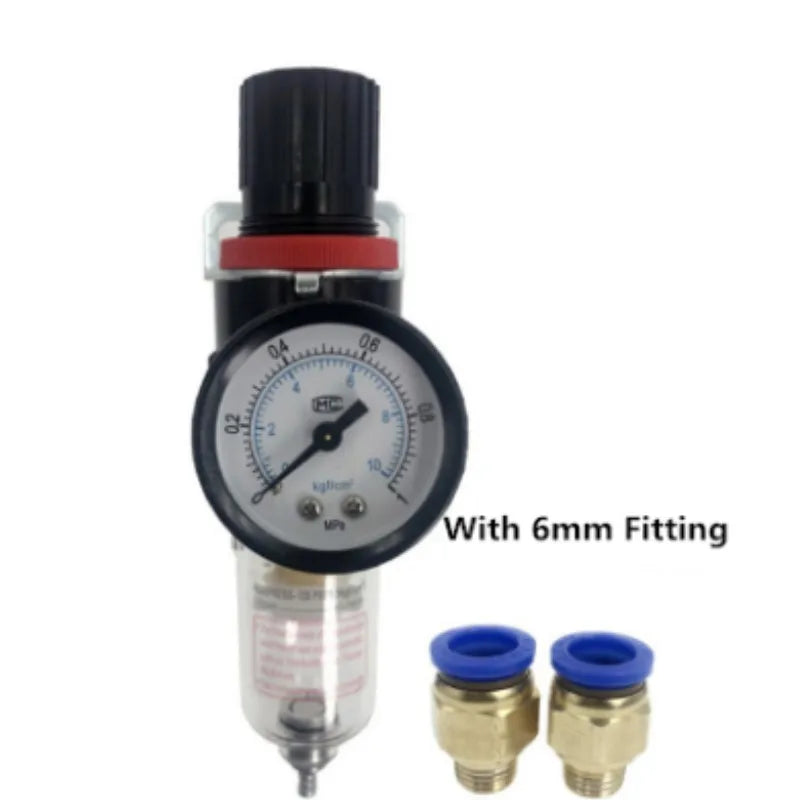

Filter+PC6mm Fitting: For Pipe6*4mm

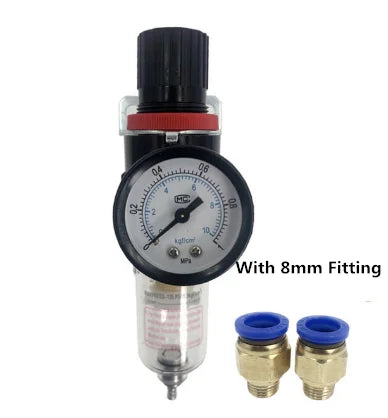

Filter+PC8mm Fitting: For Pipe8*5mm

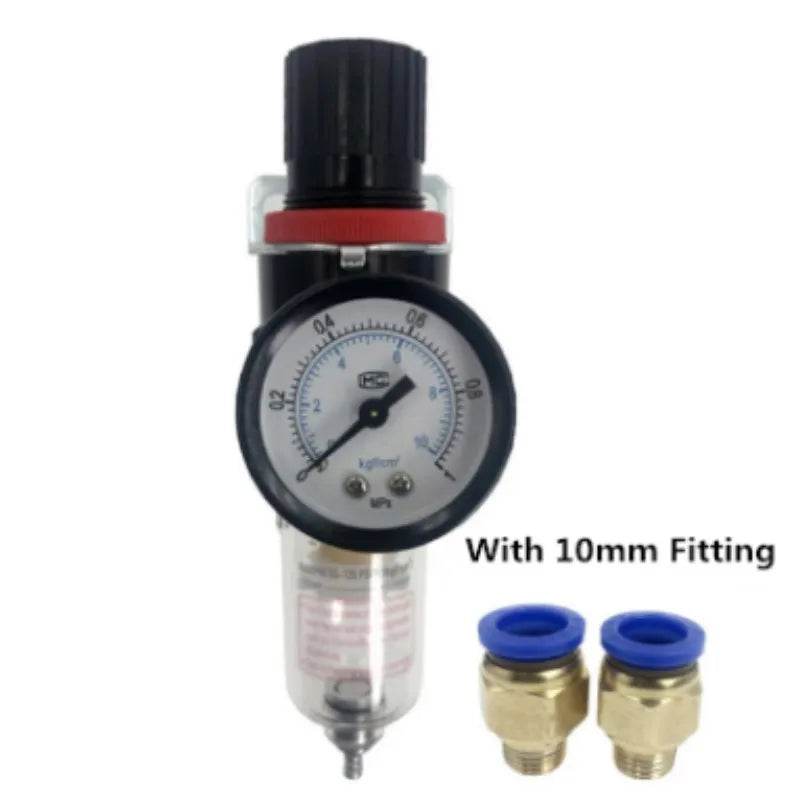

Filter+PC10mm Fitting:For Pipe10*6.5mm

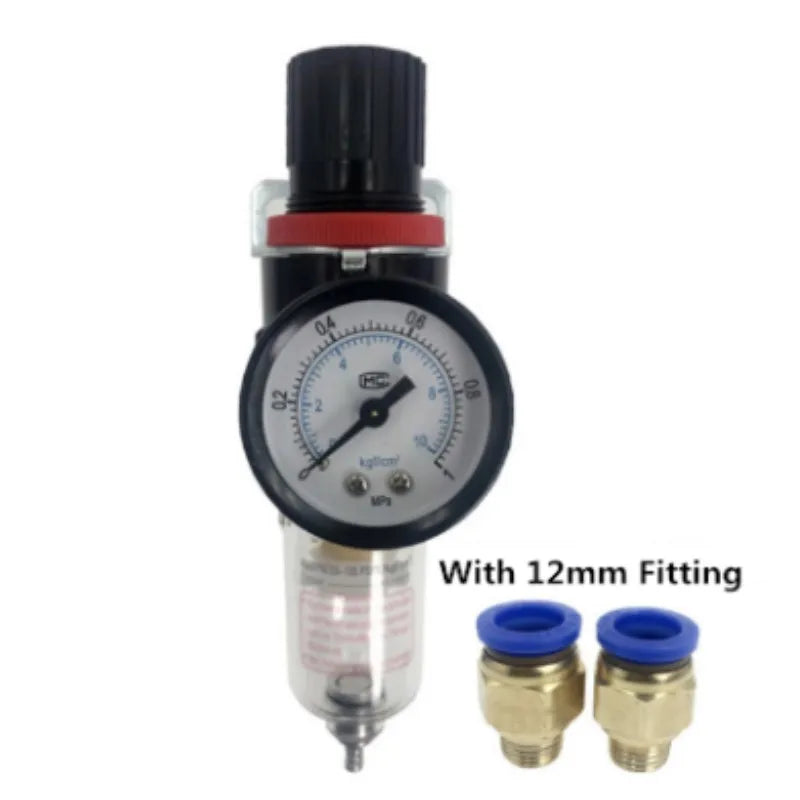

Filter+PC12mm Fitting: For Pipe12*8mm

Filter+PC14mm Fitting:For Pipe14*10mm

Filter+PC16mm Fitting: For Pipe16*12mm

Material: Body (Aluminum Die-casting Products), Yung Cup (polycarbonate)

Fluid: Air

Filtration Precision: 5μm

Operating Pressure range: 0 ~ 1.0MPa (Manual Drain: 0-9.5kgf / cm2, Differential Pressure Discharge: 1.5-9.5kgf / cm2)

Temperature: 5 ~ 60 °

Gauge Caliber: G1 / 8

Treatment Cup Capacity: 15CM3Length: Appox 15cm

Installation And Use :

The Direction Shown By The Arrow On The Valve Body Is Installed, Which Is The Direction Of The Gas Flow Direction.

Package Included:1x Filter regulator
