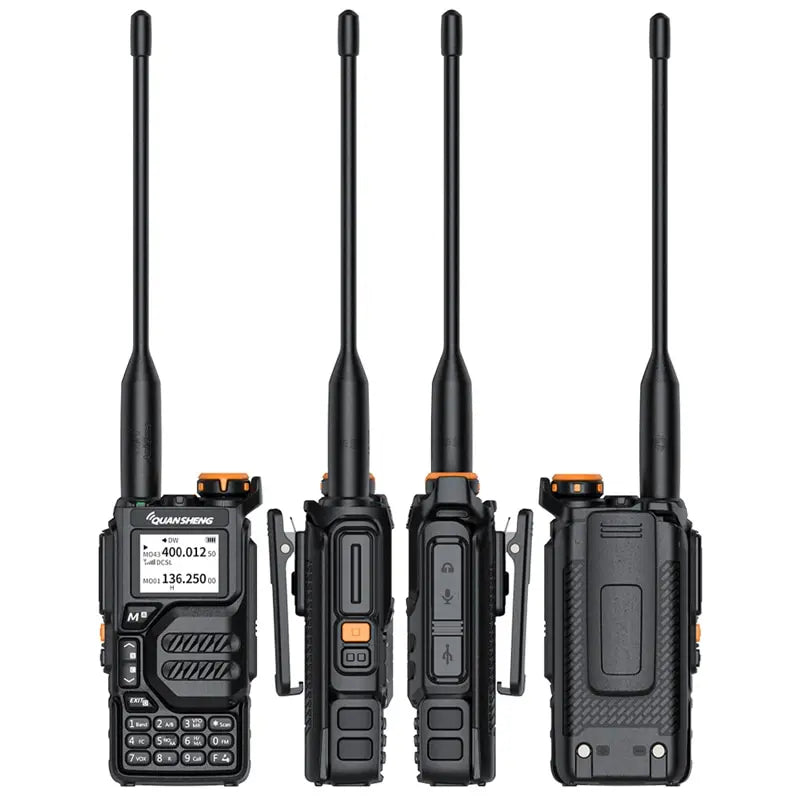

Quansheng UVK 5 W walkie Talkie
Quansheng UVK 5 W walkie Talkie
SPECIFICATIONS
Brand Name: Quan Sheng
Model Number: UVK5
Battery Capacity(mAh): 1600
Walkie Talkie Type: Portable
Is_Display: Yes
Maximum Range: 5km-10km
Waterproof / Water-Resistant: IP57
Origin: Mainland China
Output Power(w): 3w-5w
Choice: yes
• IP57 Waterproof/Water-resistant :This walkie talkie is waterproof and can withstand harsh weather conditions, making it perfect for outdoor activities.
• Maximum Range of 5km-10km :With a maximum range of 5km-10km, this walkie talkie is ideal for communication between groups or individuals who are separated by a distance.
• One Button Frequency Matching :The one-button frequency matching feature allows for easy and quick communication between users, making it perfect for emergency situations or group activities.
• Portable Walkie Talkie Type :This walkie talkie is portable and lightweight, making it easy to carry around and use on-the-go.
Product features |
|||
1: |
NOAA weather reception |
25: |
DTMF |
2: |
Fast linking |
26: |
DTMF ANI |
3: |
10 groups of voice encryption (scrambling) |
27: |
High, medium and low power options |
4: |
Large capacity battery/long standby time |
28: |
Receive and transmit signaling are set separately |
5: |
Lighting function |
29: |
Multiple step frequencies |
6: |
Reverse frequency operation function |
30: |
Initialize the settings |
7: |
Timeout timer |
31: |
Channel storage |
8: |
Transmits 1750 signals |
32: |
Computer programmable |
9: |
Frequency, channel mode conversion |
33: |
Tone switch |
10: |
200 channels |
34: |
AM/FM air segment reception |
11: |
Voice telegram |
35: |
FM radio |
12: |
Multi-segment transmit and receive |
36: |
Digital signaling CTCSS/DCS |
13: |
Automatic/manual emergency alarm |
37: |
TYPE-C and mount |
14: |
Multiple scans |
38: |
VOX voice-activated emission function |
15: |
Difference frequency direction setting |
39: |
Automatic signaling search |
16: |
Difference frequency setting |
40: |
Busy and banned |
17: |
Wide and narrow band options |
41: |
Channel number, channel frequency, channel name Multiple display methods |
18: |
Squelch level setting |
42: |
Channel scan added |
19: |
Keypad lock |
43: |
Large screen dot matrix LCD display |
20: |
The backlight automatically turns off the selection time |
44: |
Transit desk forwarding confirmation function |
21: |
Cross-segment intercom function |
45: |
Boot password protection |
22: |
Wireless full machine replication |
46: |
Frequency meter function |
23: |
DTMF dialing |
47: |
That is, the call channel |
24: |
On-site programming |
General specifications |
|||||
Signal channel |
: |
200 |
Audio power |
: |
≥ 0.5W |
Number of FM radios stored |
: |
20 |
Audio distortion |
: |
≤ 10% |
Frequency stability |
: |
±1ppm |
launch |
||
Size |
: |
115mmX60mmX37.5mm |
Band |
: |
144 ∽ 146MHz430 ∽ 440MHz |
weight |
: |
234g |
Trans with power |
: |
4W |
Operating temperature |
: |
-20 ℃ +60 ℃ |
Transmit current |
: |
≤ 1.5A |
Antenna impedance |
: |
EUR 50 |
Maximum frequency offset |
: |
≤ 5KHz(25KHz), 2.5 ≤ KHz(12.5KHz) |
Modulation fashion |
: |
FM:11KOF3E(12.5KHz),16K0F3E(25KHz) |
Modulation distortion |
: |
≤ 5% |
NOAA channel number |
: |
10 |
Stray components |
: |
≤ 7.5uW |
Battery capacity |
: |
1600mAh |
Frontage power |
: |
70dB(25KHz),60dB(12.5KHz) |
reception |
: |
Residual modulation |
: |
40dB |
|
Reference sensitivity |
: |
FM(12dB SINAD) F1(50 ∽ 76) -121dBm F2(108 ∽ 135.9975) -121dBm F3(136 ∽ 173.9975) -123dBm F4(174 ∽ 349.9975) -123dBm F5(350 ∽ 399.9975) -123dBm F6(400 ∽ 469.9975) -123dBm F6(470 ∽ 599.9975) -121dBm WFM(20dB SINAD) WFM(76 ∽ 108) -110dBm AM(10dB S/N) F2(108 ∽ 135.9975) -113dBm |
Intercom precautions |
|
1: |
Before using the walkie-talkie, make sure that the battery or rechargeable battery is properly installed. |
2: |
Before using the walkie-talkie, familiarize yourself with its functions and operation methods. |
3: |
Follow the walkie-talkie's guidelines and safety regulations. |
4: |
When using a walkie-talkie, make sure your voice is clear and easy to understand. |
5: |
When you are not using the walkie-talkie, turn it off to save battery life. |
6: |
Avoid exposing the walkie-talkie to heat, humidity, or extreme cold. |
7: |
Avoid using walkie-talkies while using other electronic devices such as cell phones or radios. |
8: |
Avoid using powerful electronic devices or sources of radio interference near walkie-talkies. |
9: |
When using walkie-talkies, observe local regulations and regulations, including radio frequencies and usage restrictions. |
10: |
When using the walkie-talkie, please respect the privacy and safety of others. |
11: |
For more precautions and recommendations on the use of walkie-talkies, you can look up the walkie-talkie manufacturer's website or online forum. |
12: |
If the walkie-talkie needs to be used in a high-temperature environment, make sure it has adequate ventilation to prevent overheating. |
13: |
Avoid exposing the walkie-talkie to extremely low temperatures, as low temperatures can damage batteries and electronics, causing the walkie-talkie to malfunction. |
14: |
If the walkie-talkie needs to be used in an extremely low temperature environment, make sure it has adequate protection to prevent freezing and damage. |
15: |
When using the walkie-talkie, follow the manufacturer's temperature limits and recommendations. |
16: |
Follow the walkie-talkie's usage guidelines and safety regulations to ensure proper use and maintenance of the walkie-talkie. |
17: |
Avoid using other electronic devices or sources of radio interference near the walkie-talkie to prevent interference and damage to the walkie-talkie. |
18: |
When using the walkie-talkie, be aware of your surroundings to ensure your safety and the safety of others. |
19: |
Comply with local regulations and regulations, including radio frequency and usage restrictions. |
20: |
If there is any abnormality in the walkie-talkie, please stop using it immediately and contact the manufacturer or professional technicians for inspection and repair. |
