UNI-TUT673A/UT675A Battery Tester
UNI-TUT673A/UT675A Battery Tester
Regular price
€59,00 EUR
Regular price
€65,00 EUR
Sale price
€59,00 EUR
Unit price
/
per

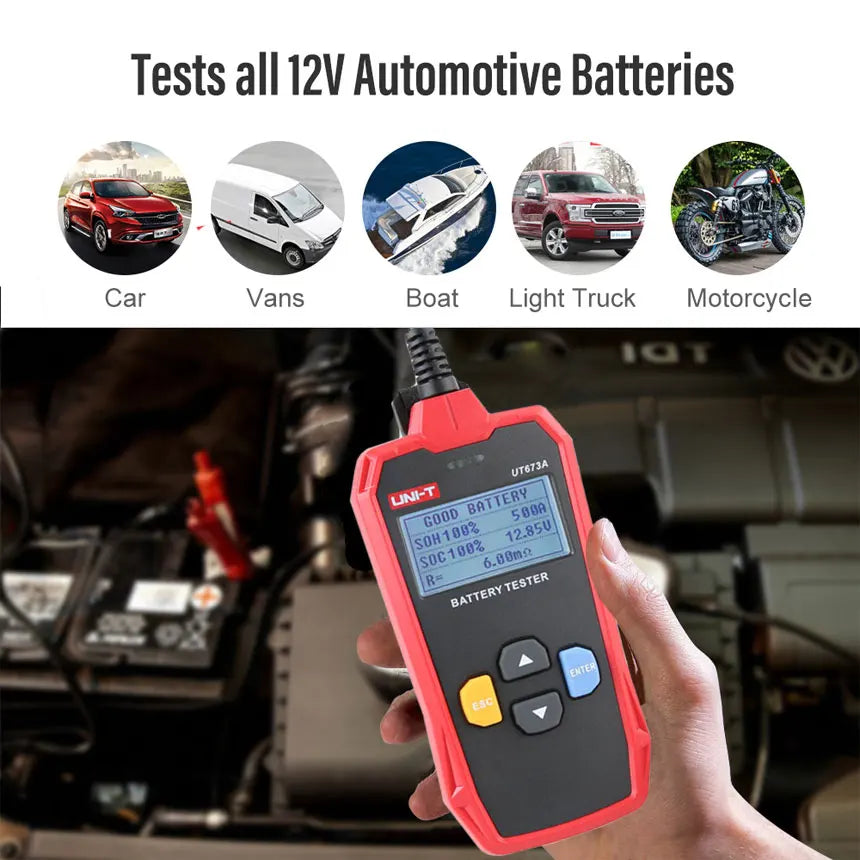

UT673A/UT675A battery testers can be used to analyze the battery health of automobile batteries, suitable for battery capacities from 3 to 250Ah. These CE certified testers can rapidly and accurately detect common faults caused by battery. UT675A also includes USB communication and built-in printer for report generation.
Features
1. 12V cranking lead acid battery test

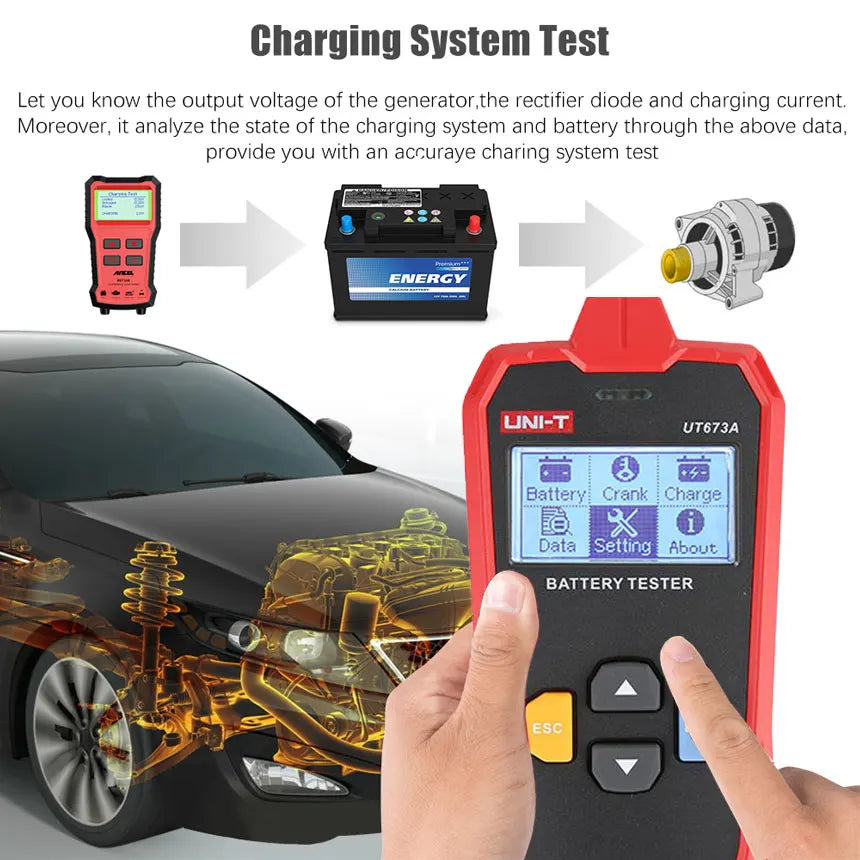

2. 12/24V charging or cranking system test

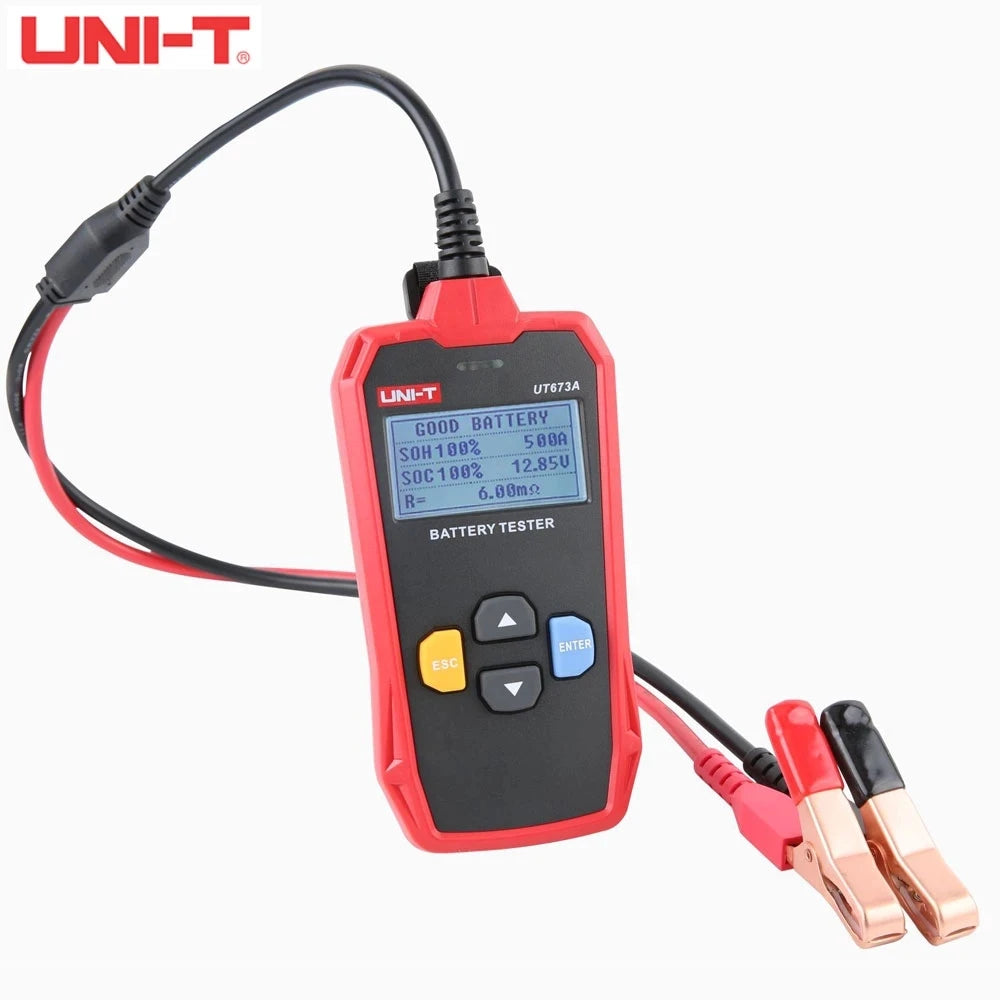

3. Display battery capacity, voltage, resistance and life

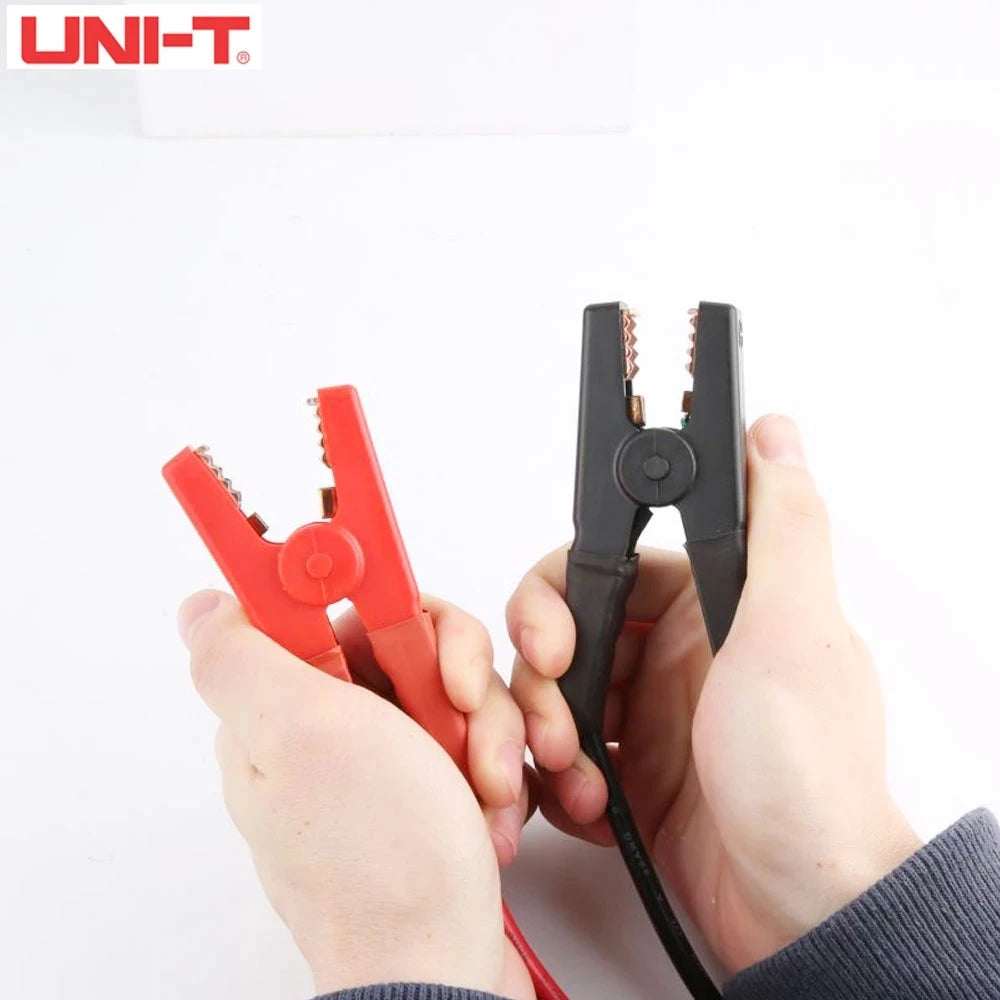

4. Four-termina Kelvin test
5. 10 types of battery standards
6. Language option (Chinese/English)
7. Test without battery disassembly
8. LED color indication for test result (UT673A)
9. Print on-line and real-time test reports (UT675A)
10. USB data transfer (UT675A)
Parameter
Specifications |
Range |
UT673A |
UT675A |
Certificates |
CE, FCC,RoHS |
||
12V battery test |
7~16V DC |
√ |
√ |
12V/24V cranking system test |
7~30V DC |
√ |
√ |
12V/24V charging system test |
7~30V DC |
√ |
√ |
Battery type |
Ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, GEL battery,EFB battery |
||
Battery capacity |
3~250Ah |
√ |
√ |
Battery standard and range |
CCA:40~2000; BCI: 40~2000; CA: 40~2000; MCA: 40~2000; JIS: 26A17~245H52; DIN:40~1400; |
||
IEC: 40~1400; EN: 40~2000; SAE: 40~2000; AH: 3~250AH |
|||
Over voltage protection |
|
√ |
√ |
Reverse connection protection |
|
√ |
√ |
A prompt of poor contact |
|
√ |
√ |
Battery status display |
|
√ |
√ |
Battery life display |
|
√ |
√ |
Battery capacity display |
|
√ |
√ |
Battery internal resistance display |
|
√ |
√ |
USB communication |
|
|
√ |
Printing function |
|
|
√ |
General Characterisitics |
|||
Power |
None,powered by external source |
||
Display |
128*64 black and white lattice |
||
Product net weight |
UT673A: 264g; UT675A: 413g |
||
Product size |
UT673A: 76mm x 22mm x 142mm; UT675A: 95mm x 47mm x 183mm |
